24x10Gb SFP+, 6x100Gb QSFP28/40Gb QSFP+, L3 Aggregation Switch, Enterprise SONiC OS

Description

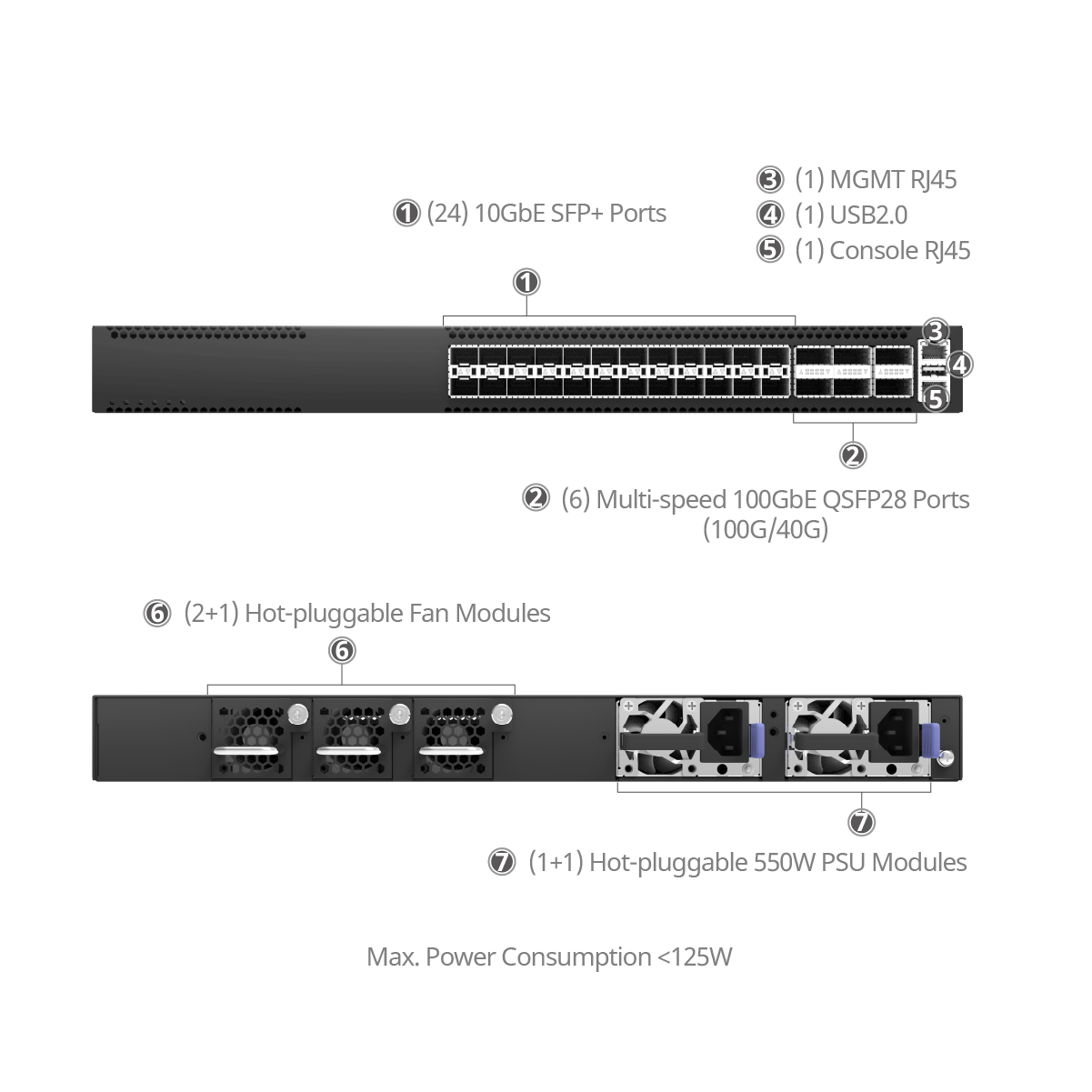

The CX206P-24S-M-H is a versatile L3 aggregation switch, powered by the Marvell Prestera Aldrin 2 chip. It features 24x10Gb SFP+ ports and 6x100Gb/40Gb QSFP28/QSFP+ uplinks, offering robust high-bandwidth connectivity for diverse network roles. Preloaded with AsterNOS, an enterprise-grade SONiC distribution, this switch provides full Layer 3 IPv4/IPv6 routing and advanced functions like VXLAN for virtual network expansion. Its container-based architecture allows for easy feature expansion, making it an ideal choice for enterprise distribution and core networks, high-bandwidth video/security interconnections, or a cost-effective ToR switch for private clouds.

• Advanced Routing: Supports BGP, MP-BGP, OSPFv2/v3, and VRF.
• Virtualization: Full VXLAN and EVPN Type 2/3/5 support.
• High Availability: Features MLAG, BFD, and VRRP for maximum uptime.
• Security: Includes 802.1x, DAI, IPSG, and CoPP.
• Management: ZTP for easy deployment, standard CLI, sFlow, and PTP 1588v2.
• Performance: 1.09 Tbps switching capacity, 600 Mpps forwarding rate.
• Efficiency: Low 125W power consumption.
